Testquiz Statistics

FS-Quiz.eu Testquiz Statistics

Question Total Answers Correct % Average Time Fastest Solution
Q1 119 69.7% 3 min 26 sec 1 min 11 sec
Q2 119 91.6% 1 min 19 sec 17 sec
Q3 119 63.9% 4 min 6 sec 49 sec
Q4 119 95.8% 1 min 7 sec 16 sec
Q5 119 8.4% 1 min 56 sec 1 min 25 sec
Q6 120 91.7% 1 min 14 sec 32 sec
Q7 120 25.8% 11 min 14 sec 52 sec
Q8 119 82.4% 5 min 5 sec 37 sec
Q9 120 78.3% 1 min 52 sec 45 sec
Q10 120 14.2% 2 min 53 sec 2 min 32 sec
  • Participating Teams: 120
  • Completion Rate: 96.7% (116/120 teams)
  • Perfect Scores: 0 teams
  • Average Correct Answers: 6.3
  • Average Total Time: 34 min 8 sec

Question:

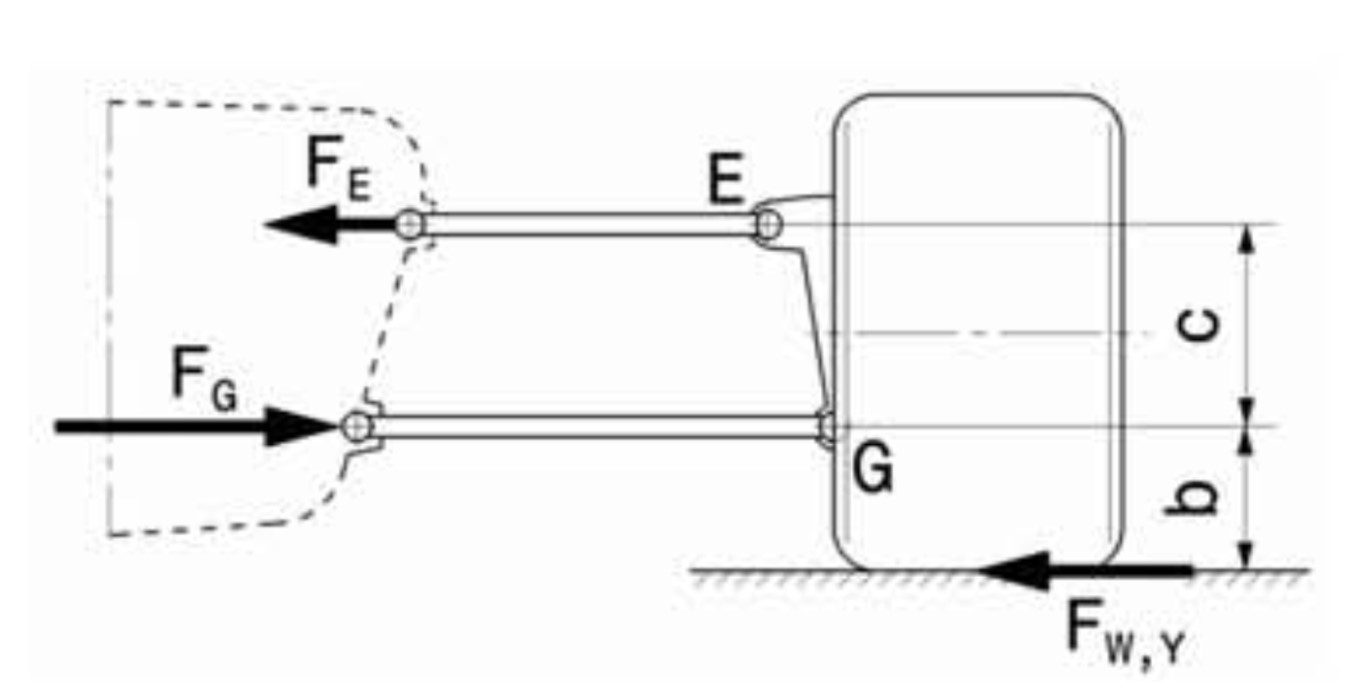

The schematic shows the front upright of a Formula Student car connected to the chassis by an upper and a lower suspension link at points E and G. During cornering, a lateral tire force Fw,y = 1 kN acts at ground level. The vertical distance between the lower joint G and the ground is b = 100 mm, and the vertical separation between the upper and lower joints is c = 200 mm.
Determine the reaction forces in the two suspension links, FE and FG.

Answer in kN and round to one decimal place.
Example answer: 123.4; 567.8
Correct Answer: 0.5; 1.5
Answer Statistics

Total Answers: 119

Correct Answers: 83

Rate: 69.7%

Time Statistics

Duration: 5 min 0 sec

Average Time: 3 min 26 sec

Time Deviation: ± 1 min 10 sec

Fastest Solution: 1 min 11 sec

Most Common Wrong Answers
  • (14 times)
  • 0.5;1.5 (7 times)
  • 0.5; -1.5 (3 times)
Time Distribution (Correct Answers Only)
Fastest 1m 11s
25% Percentile 2m 20s
Median 3m 4s
75% Percentile 4m 13s
Slowest 4m 57s

Question:
According to Formula Student rules, the baseline steel used in SES calculations for bending and buckling must have a Yield Strength of at least:
Correct Answer: 305 MPa (44.2 ksi)
Answer Options:
  • 305 MPa (44.2 ksi)
  • 180 MPa (26ksi)
  • 300 MPa (43.5 ksi)
  • 200 GPa (29,000 ksi)
  • 365 MPa (52.9 ksi)
Answer Statistics

Total Answers: 119

Correct Answers: 109

Rate: 91.6%

Time Statistics

Duration: 3 min 0 sec

Average Time: 1 min 19 sec

Time Deviation: ± 44 sec

Fastest Solution: 17 sec

Most Common Wrong Answers
  • (7 times)
  • 180 MPa (26ksi) (2 times)
  • 365 MPa (52.9 ksi) (1 times)
Time Distribution (Correct Answers Only)
Fastest 17s
25% Percentile 45s
Median 1m 9s
75% Percentile 1m 45s
Slowest 2m 56s

Question:

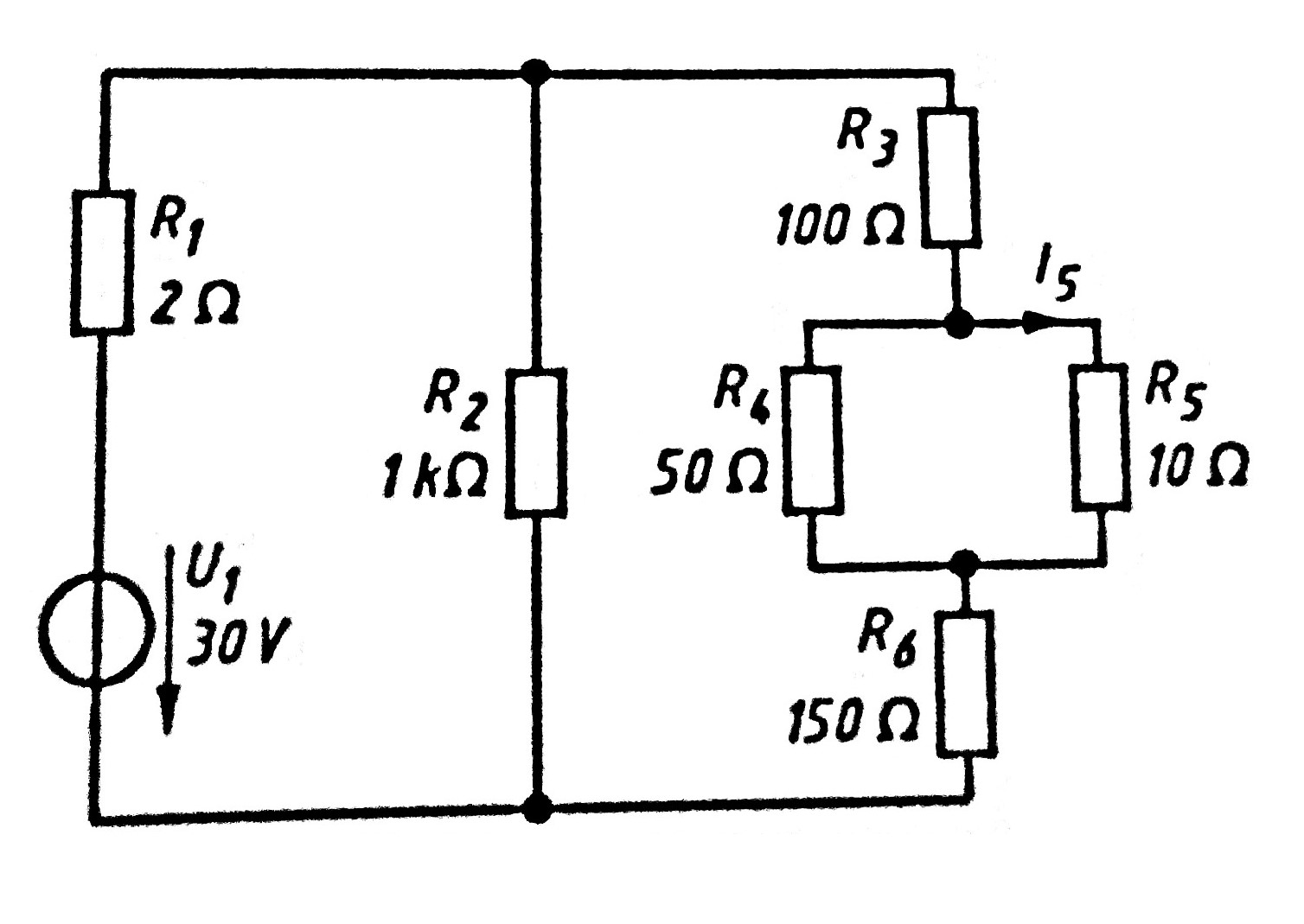

Determine I5 in the following circuit.

Answer in mA and round to one decimal places.
Example answer: 1.2
Correct Answer: 95.8
Answer Statistics

Total Answers: 119

Correct Answers: 76

Rate: 63.9%

Time Statistics

Duration: 7 min 0 sec

Average Time: 4 min 6 sec

Time Deviation: ± 1 min 52 sec

Fastest Solution: 49 sec

Most Common Wrong Answers
  • -95.8 (18 times)
  • 144.7 (7 times)
  • (7 times)
Time Distribution (Correct Answers Only)
Fastest 49s
25% Percentile 2m 24s
Median 3m 28s
75% Percentile 5m 28s
Slowest 6m 57s

Question:
New question type!
For this drag and drop question, here's an easy one to start with. The next ones will be faster!

Sort the electrical systems by their voltage level, from lowest to highest.
Drag and drop the voltage levels into the correct order.
Correct Answer: USB, 12V, 24V, LV-Max, 120V, HV-Max
Answer Statistics

Total Answers: 119

Correct Answers: 114

Rate: 95.8%

Time Statistics

Duration: 3 min 0 sec

Average Time: 1 min 7 sec

Time Deviation: ± 43 sec

Fastest Solution: 16 sec

Most Common Wrong Answers
  • HV-Max, 120V, LV-Max, 24V, 12V, USB (1 times)
  • 12V, HV-Max, 120V, LV-Max, USB, 24V (1 times)
  • USB, 12V, 24V, 120V, LV-Max, HV-Max (1 times)
Time Distribution (Correct Answers Only)
Fastest 16s
25% Percentile 35s
Median 51s
75% Percentile 1m 24s
Slowest 2m 59s

Question:
Sort this year's Formula Student events by their start date, from earliest to latest.
Drag and drop the events to arrange them in the correct order.
Correct Answer: FSCH, FSBK, FSCZ, FSA, FSS, FSG, FSEast, FSF, FSP, FST
Answer Statistics

Total Answers: 119

Correct Answers: 10

Rate: 8.4%

Time Statistics

Duration: 2 min 0 sec

Average Time: 1 min 56 sec

Time Deviation: ± 14 sec

Fastest Solution: 1 min 25 sec

Most Common Wrong Answers
  • (68 times)
  • FSCH, FSBK, FSCZ, FSP, FSA, FSS, FSG, FSEast, FSF, FST (8 times)
  • FSCH, FSBK, FSCZ, FSA, FSS, FSG, FSEast, FSP, FSF, FST (2 times)
Time Distribution (Correct Answers Only)
Fastest 1m 25s
25% Percentile 1m 43s
Median 1m 55s
75% Percentile 1m 57s
Slowest 1m 58s

Question:
Select the materials correctly sorted by their density from the least dense to the most dense.
Drag and drop the materials into the correct order.
Correct Answer: Li, Mg, Al, Ti, Fe, Cu, Ag, Pb
Answer Statistics

Total Answers: 120

Correct Answers: 110

Rate: 91.7%

Time Statistics

Duration: 2 min 0 sec

Average Time: 1 min 14 sec

Time Deviation: ± 23 sec

Fastest Solution: 32 sec

Most Common Wrong Answers
  • (4 times)
  • , , , , , , , (2 times)
  • Li, Mg, Al, Ag, Ti, Fe, Pb, Cu (1 times)
Time Distribution (Correct Answers Only)
Fastest 32s
25% Percentile 57s
Median 1m 11s
75% Percentile 1m 28s
Slowest 2m 3s

Question:
Formula Student goes to Space!
What SpaceX can do, we can do too. We’re sending a Formula Student car into space.

Consider a rocket with a conical nose, diameter d and opening angle α, moving through the atmosphere with velocity v in air of density ρatm. The thermal motion of the air molecules can be neglected. Due to elastically assumed collisions with the air molecules, a drag force acts on the rocket.
The drag force changes during the flight. The figures show the rocket’s velocity as well as the atmospheric pressure as functions of altitude. The atmospheric temperature is assumed to be constant.
The Earth’s mass is given as ME = 5.97 × 1024 kg and the Earth’s radius as RE = 6.37 × 106 m.
Determine the minimum velocity the rocket must reach at engine cutoff in order to achieve a low Earth orbit. Also determine the orbital period.
Round to one decimal places. Answer in kilometres per second and minutes separated by a semicolon.
Example answer: 1.2; 12.3
Correct Answer: 7.9; 84.3
Answer Statistics

Total Answers: 120

Correct Answers: 31

Rate: 25.8%

Time Statistics

Duration: 15 min 0 sec

Average Time: 11 min 14 sec

Time Deviation: ± 4 min 0 sec

Fastest Solution: 52 sec

Most Common Wrong Answers
  • 7.9; 85.3 (23 times)
  • (11 times)
  • 7.9; 84.4 (8 times)
Time Distribution (Correct Answers Only)
Fastest 52s
25% Percentile 5m 45s
Median 8m 52s
75% Percentile 12m 5s
Slowest 14m 59s

Question:
Unfortunately, the engine was switched off too late, and instead of an Earth orbit, we have now reached a solar orbit.

Assume now that the race car orbits the Sun along a path with a radius equal to the average Earth–Sun distance of approximately 1.5⋅10^11m. The race car is far away from the Earth and all other celestial bodies. The mass of the Sun is approximately mS=1.99⋅10^30kg, and the radius of the Sun can be assumed to be very small compared to the Earth–Sun distance.
Now we stop the race car completely relative to the Sun.

How long will it take for the race car to fall into the Sun?

Round to the nearest whole day.
Example answer: 1
Correct Answer: 65
Answer Statistics

Total Answers: 119

Correct Answers: 98

Rate: 82.4%

Time Statistics

Duration: 7 min 0 sec

Average Time: 5 min 5 sec

Time Deviation: ± 1 min 56 sec

Fastest Solution: 37 sec

Most Common Wrong Answers
  • (9 times)
  • 83 (7 times)
  • 130 (2 times)
Time Distribution (Correct Answers Only)
Fastest 37s
25% Percentile 3m 28s
Median 5m 19s
75% Percentile 6m 33s
Slowest 7m 1s

Question:
What is the Lagrange function of the mathematical pendulum shown in the diagram, consisting of a massless string of length l and a point mass m?
a) L = 1/2ml2φ̇2 + mgl sin φ
b) L = 1/2ml2φ̇2 - mgl sin φ
c) L = 1/2ml2φ̇2 + mgl cos φ
d) L = 1/2ml2φ̇2 - mgl cos φ
Correct Answer: c
Answer Options:
  • a
  • b
  • c
  • d
Answer Statistics

Total Answers: 120

Correct Answers: 94

Rate: 78.3%

Time Statistics

Duration: 3 min 0 sec

Average Time: 1 min 52 sec

Time Deviation: ± 42 sec

Fastest Solution: 45 sec

Most Common Wrong Answers
  • d (10 times)
  • b (6 times)
  • a (5 times)
Time Distribution (Correct Answers Only)
Fastest 45s
25% Percentile 1m 21s
Median 1m 42s
75% Percentile 2m 21s
Slowest 3m 2s

Question:
Alumni from your team are doing a test inspection of your car. The following points were noted.

Which of these points need to be corrected?
Correct Answer: The firewall has a thickness of 0.2 mm, The rain tires have a depth of 2.2 mm, The AMS monitors the temperature of every fourth cell
Answer Options:
  • The firewall has a thickness of 0.2 mm
  • When viewed from the side, the lap belt has an angle of 50 degrees; while driving
  • The underside of the accumulator is made of aluminum and has a thickness of 3.5 mm
  • When ready to drive, the ground clearance is 32 mm
  • The rain tires have a depth of 2.2 mm
  • The point of contact between the back of the driver's helmet and head restraint is 4.5 mm above, 8.5 mm below, and 6.5 mm to either side
  • The Anti Intrusion Plate made of aluminum has a thickness of 4.5 mm
  • TSMP has a current limiting resistor of 10 kΩ at a maximum voltage of 350 VDC
  • The Ready-To-Drive sound is 2.8 seconds long
  • The AMS monitors the temperature of every fourth cell
Answer Statistics

Total Answers: 120

Correct Answers: 17

Rate: 14.2%

Time Statistics

Duration: 3 min 0 sec

Average Time: 2 min 53 sec

Time Deviation: ± 24 sec

Fastest Solution: 2 min 32 sec

Most Common Wrong Answers
  • (55 times)
  • The firewall has a thickness of 0.2 mm, The rain tires have a depth of 2.2 mm, The point of contact between the back of the driver's helmet and head restraint is 4.5 mm above, 8.5 mm below, and 6.5 mm to either side, The AMS monitors the temperature of every fourth cell (17 times)
  • The firewall has a thickness of 0.2 mm, The rain tires have a depth of 2.2 mm, The point of contact between the back of the driver's helmet and head restraint is 4.5 mm above, 8.5 mm below, and 6.5 mm to either side, The Anti Intrusion Plate made of aluminum has a thickness of 4.5 mm, The AMS monitors the temperature of every fourth cell (3 times)
Time Distribution (Correct Answers Only)
Fastest 2m 32s
25% Percentile 2m 57s
Median 2m 57s
75% Percentile 2m 59s
Slowest 3m 0s
